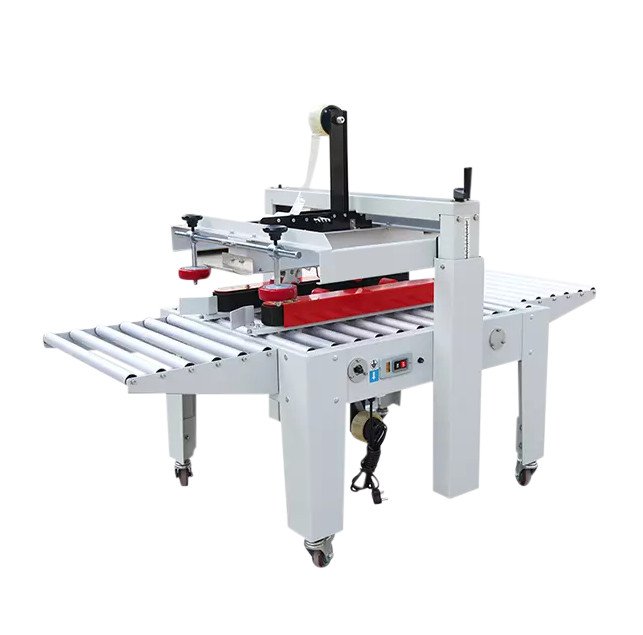

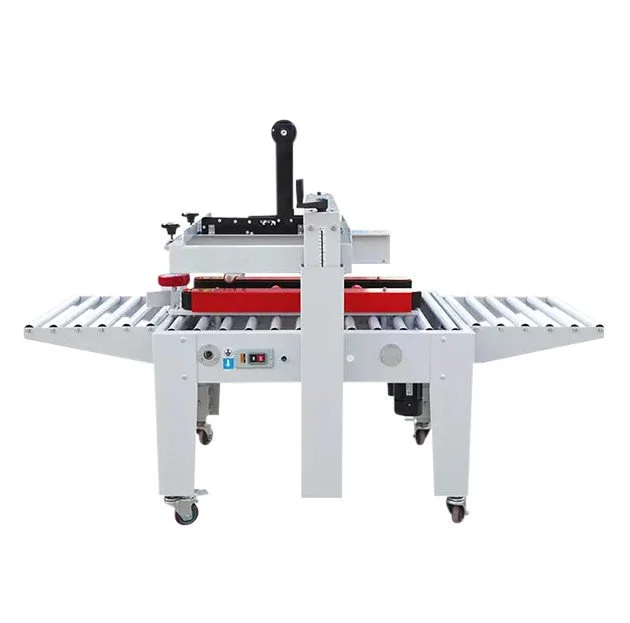

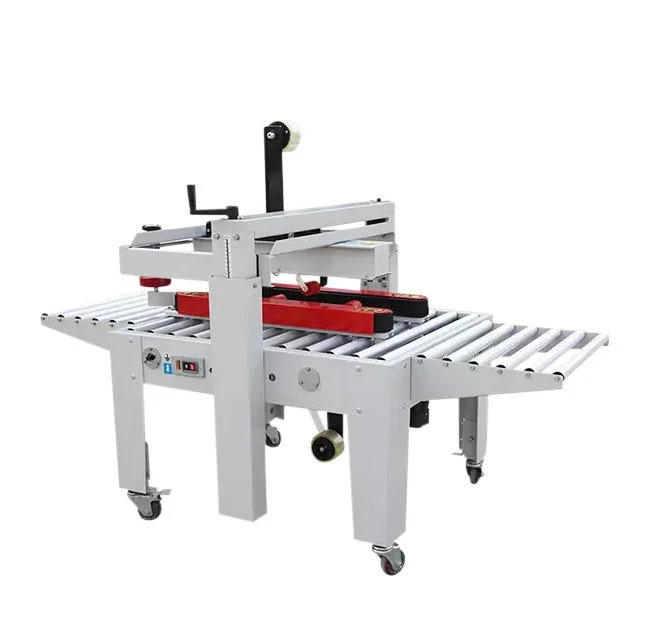

Carton Sealer
CS-Series | SKU: CS-5050AS
Unlock seamless carton sealing with our CS-5050AS featuring two side belt drive design. The operator simply folds the top flaps of the corrugated carton and feeds it into the machine. The CS-5050AS applies a single tape to both the top and bottom of the box simultaneously. The CS-5050AS can easily be adjusted to process a different size carton. Our carton sealers offer reliable, cost-effective solutions that deliver significant savings to your production process.
Built for low profile cartons, the CS-5050AS can seal box heights as low as 3.5” - making it excellent fit for fulfillment centers running flat or slim pack shipments.
Experience thoughtful design with our carton sealers – tailored for your convenience. The sealer comes complete with infeed/exit conveyors, casters, and power cord, providing you a plug and play system. Enjoy flexibility with your box sizes – easily adjust for different box widths in seconds. Elevate your packaging process with the features of our carton sealers, designed to make sealing cartons a breeze.
FEATURES:
Simple to use
Ideal for smaller boxes - seals heights as low as 3.5”
Quick manual adjustment for various box sizes
Side pressure rollers to close box top
Two side belts for positive feed
Plug and Play - Includes conveyors and casters
Optional 3” tape head available
Unit must ship via LTL freight only. Call us for rates
OPTIONS:
3” (72mm) tape heads
Specifications:
| Specifications | |
|---|---|
| Carton Size | |
| Length | 3.5" to Infinite |
| Width | 3.1" Min to 19.7" Max |
| Height | 3.5" Min to 19.7" Max |
| Machine Size | 68"L x 37"W x 38"-61H |
| Machine Speed | 65ft/min up to 15 cartons per minute |
| Max Box Weight (lbs) | 66 |
| Electrical | 110V / 1 Phase / 10 Amp |
| Weight (lbs) | Net: 242 / Gross: 400 |
| Tape Head Specs | 2" (48MM) Wide / 1,000 or 1,500 yards |
Download CS-5050AS Carton Sealer Specification Sheet for more information
