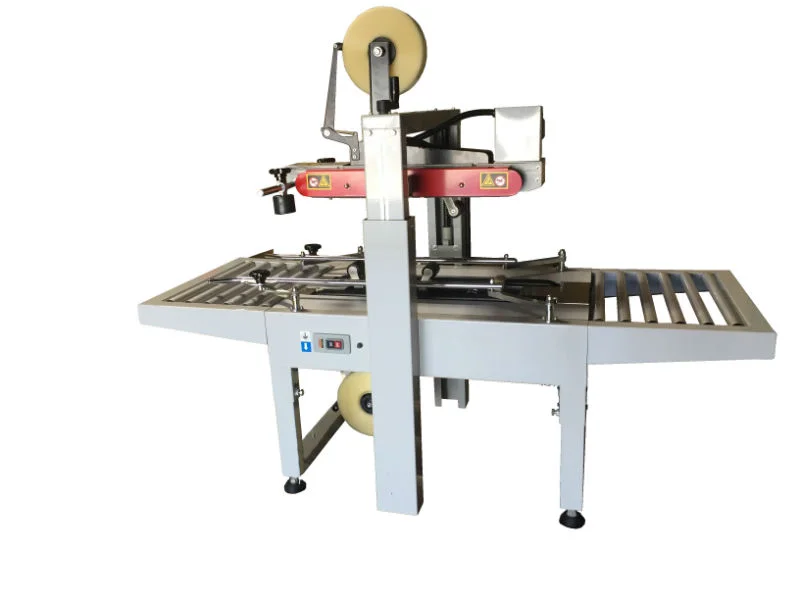

Carton Sealer

CS-Series | SKU: CS-6050

Our CS-Series of carton sealers are operator fed and designed for heavy duty applications.  These machines are reliable, cost-effective and durable providing savings to your production process.  More importantly, these machines provide a professional looking seal.  The CS-6050 Semi-Automatic Uniform Carton Sealer with Easy Manual Carton Size Adjustment has a 4-belt design (2 top and 2 bottom).  The machine comes complete with infeed/exit conveyors, casters, power cord, and plug.

The operator simply folds the top flats of the corrugated carton and feeds it into the machine.  The CS-6050 applies a single tape to both the top and bottom of the case simultaneously.  The CS-6050 can be easily adjusted in only seconds to process a different size carton.  Excellent for taller boxes.

FEATURES:

  • Adjustable height of table

  • Heavy duty frame

  • Manually adjust height and width of machine for each box size

  • Suitable for taller cartons

  • Up and down driving

  • Operator feeds and folds flaps into machine

  • Optional: 3” tape head

  • Optional:  stainless steel

  • Unit must ship via LTL freight only.  Call us for rates.

Specifications:

Specifications
Carton Size
Length6" to Infinite
Width7" Min to 19.7" Max (2")
Width7.9" Min to 19.7" Max (3")
Height5.1" Min to 23.6" Max
Table Height25" Min to 30" Max
Machine Size69"L x 32"W x (38"-63")H
Machine Speed65.6ft/min up to 15 cartons per minute
Max Box Weight (lbs)55
Electrical110V / 1 Phase / 10 Amp
Weight (lbs)385
Tape Head Specs2" (48MM) Wide / 1,000 or 1,500 yards
