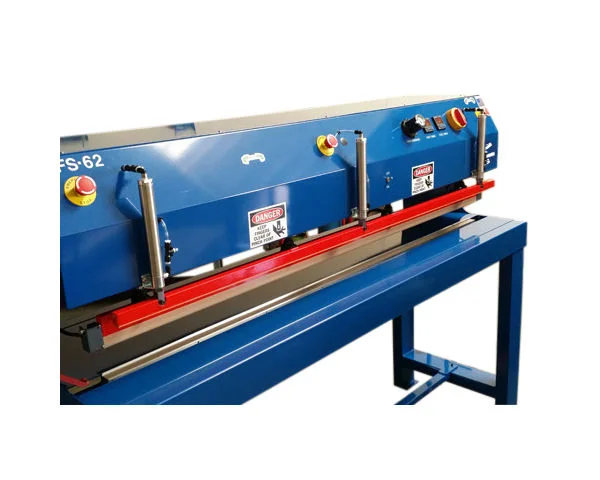

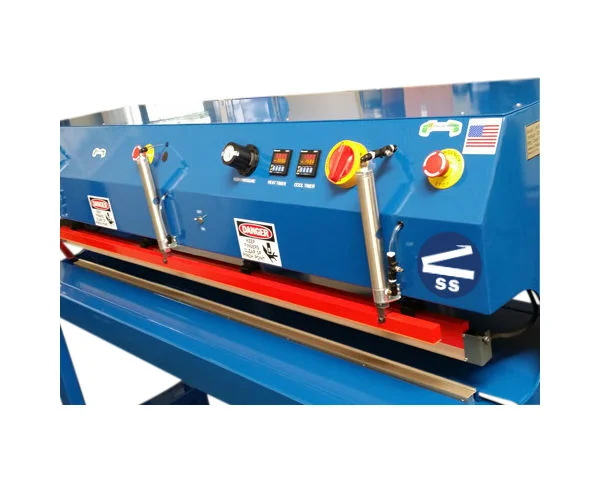

Open Back Horizontal Frame Sealer

UHHFS-Series

Our UHHFS pneumatically powered thermal impulse heat sealers are designed for heavy duty sealing applications. Designed for workloads of multiple work shifts for up to six days per week. These sealers are capable of producing quality airtight/watertight seals in many materials and sealing temperatures.

FEATURES:

  • Long seal lengths - up to 300"

  • Dual digital timers (easy to adjust and superior timer control)
  • Thermal impulse seal (airtight / watertight seals)
  • 1/4" seal width (optional dual heat)
  • Pneumatically operated
  • Foot pedal activated (optional 2-hand control)
  • Pressure gauge & receptors
  • Master on & off switch
  • 3-4" clearance between upper and lower seal jaws
  • Swivel casters w/ leveling pads
  • Heavy duty powder coated steel frame (industrial grade)
  • Exhaust port
  • Air in port
  • Clean room ready
  • Open through design
  • Call us for quotes and further information

OPTIONS AVAILABLE:

  • Temperature controller
  • HMI (PLC touch screen controller)
  • Two hand control w/ emergency stop
  • Dual heat
  • 3/8" wide element
  • 1/2" wide element
  • Multi-elements
  • Seal and cut
  • Water cooled seal jaws
  • Indicator tower light
  • Water chiller
Made In the USA.jpg


Specifications:

Header 1Header 2
Seal Length38", 50", 62", 74", 86", 98", 100" - up to 300"
Seal Width1/4" (Dual Heat Available)
Power208/220V, Single Phase, 50-60Hz
Air Requirements80-100PSI
Weight (lbs)180 (38") - 600 (110")
