Vacuum Sealer

Chamber Vacuum Sealer | SKU: DZ-500T

FEATURES:

  • Stainless steel construction
  • Durable aluminum seal bar
  • Acrylic plastic lid
  • Impulse seal - sealing length: 18.5"
  • Seal width: 10mm
  • No external compressor required
  • CE certified
  • Unit ships via LTL freight only.  Call for freight rates

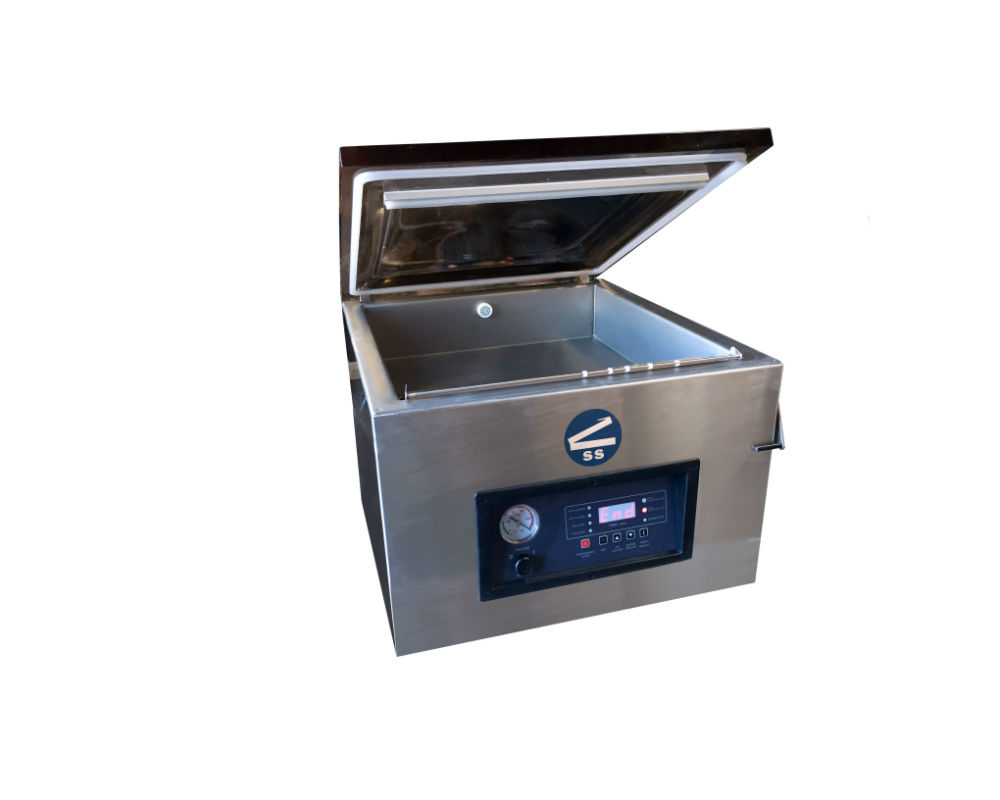

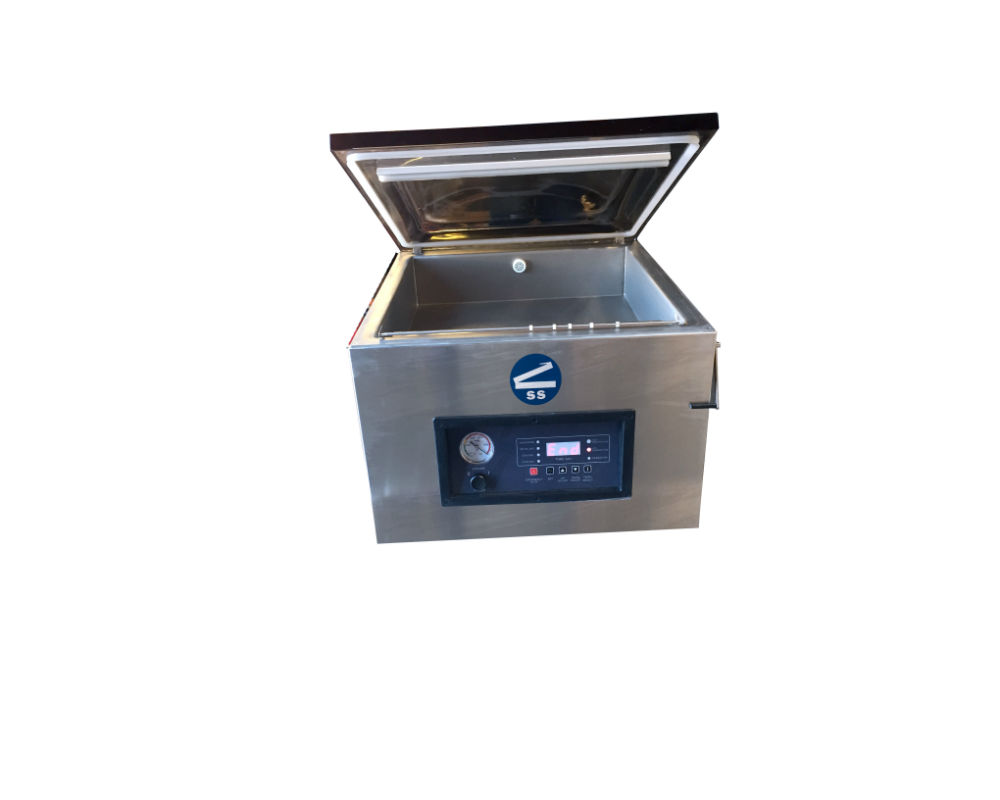

Our DZ-500T vacuum sealer is an economical 18" stainless steel vacuum chamber packaging machine.  The vacuum sealer is ideal for vacuum forming and sealing different types of vacuum pouches used in the food, pharmaceutical, coffee, tea, or electronics industries.  The unit is small and does not need an external compressor to operate.

The sealer is equipped with a digital control panel for setting the sealing temperature, sealing time, drawing air time, and cooling time.  Once the lid is closed, the machine automatically performs the operations which can be followed visually on the control panel.  The lid opens automatically when the vacuum forming and sealing operations are completed.

Specifications:

    Header 1Header 2
    Seal Length18.5"
    Seal Width10MM
    Chamber Dimensions22" x 20" x (4.8"+2")
    Vacuum Pressure1.33Kpa
    Vacuum Pump Rate20m³/h
    Motor Power900W
    Sealing Power500W
    Voltage110V/1Ph/60Hz
    Dimensions23" x 26" x 20"
    Weight (lbs)216 (Net) / 242 (Gross)
