Carton Sealer
CS-Series | SKU: CS-5050Q

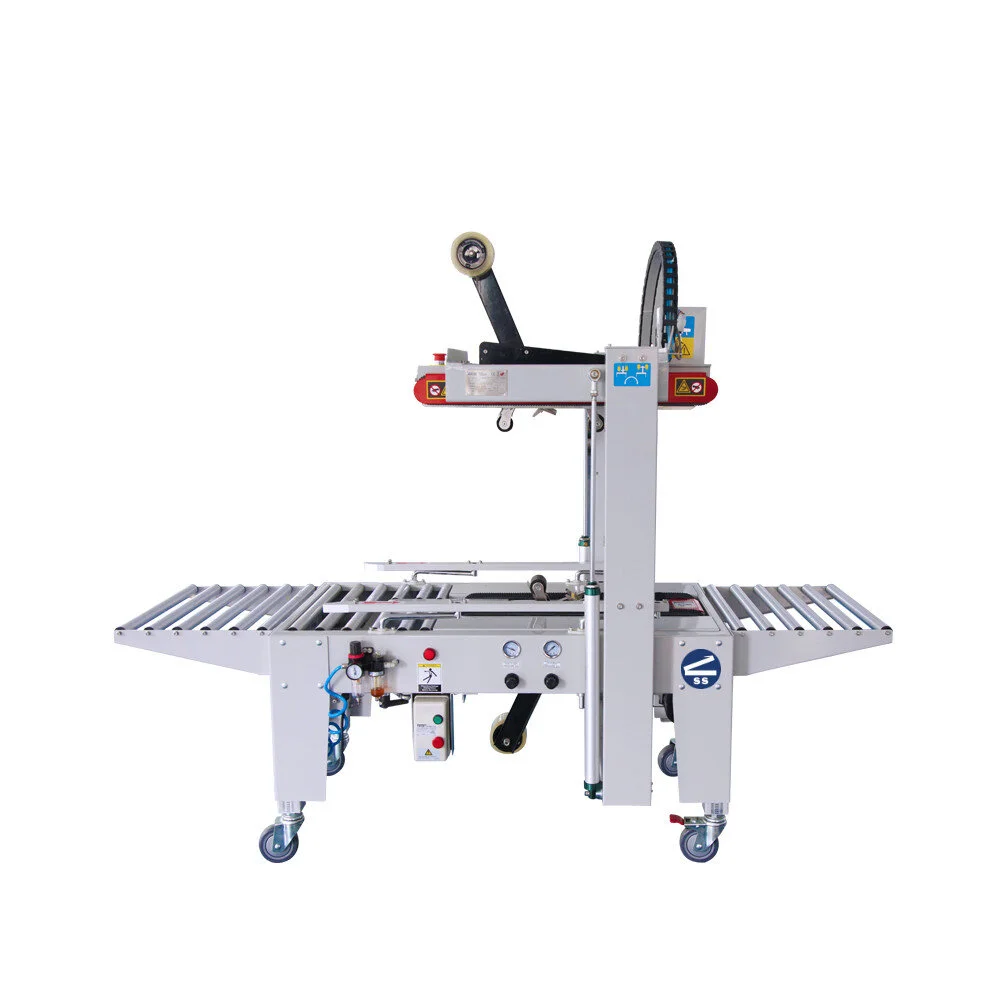

The CS-5050Q Semi-Automatic Random Carton Sealer features: a 4-belt design (2 top and 2 bottom). The machine comes complete with infeed / exit conveyors, casters, power cord and plug.
The operator simply folds the top flaps of the corrugated carton and feeds it into the machine. The operator pushes the box against a microswitch plate to activate carton sealing process. The CS-5050Q applies a single tape to both the top and bottom of the case simultaneously. The CS-5050Q will easily adjust to process different size cartons. Excellent for types of boxes.
FEATURES:
Automatic adjustment to random box sizes
Side pressure rollers to close box top
2 top and 2 bottom drive belts for positive feed
Infeed / exit conveyors
Casters
Options: 3” tape heads, stainless steel frame
Unit must ship via LTL freight only. Call us for rates.
Specifications:
| Specifications | |
|---|---|
| Carton Size | |
| Length | 6" to Infinite |
| Width | 8" Min to 19.7" Max |
| Height | 5" Min to 19.7" Max |
| Machine Size | 77"L x 31"W x (50"-57")H |
| Machine Speed | 78ft/min up to 15 cartons per minute |
| Max Box Weight (lbs) | 75 |
| Air | 0.5-0.6Mpa |
| Electrical | 110V / 1 Phase / 10 Amp |
| Weight (lbs) | 350 |
| Tape Head Specs | 3" (76MM) Wide / 1,000 or 1,500 yards |
