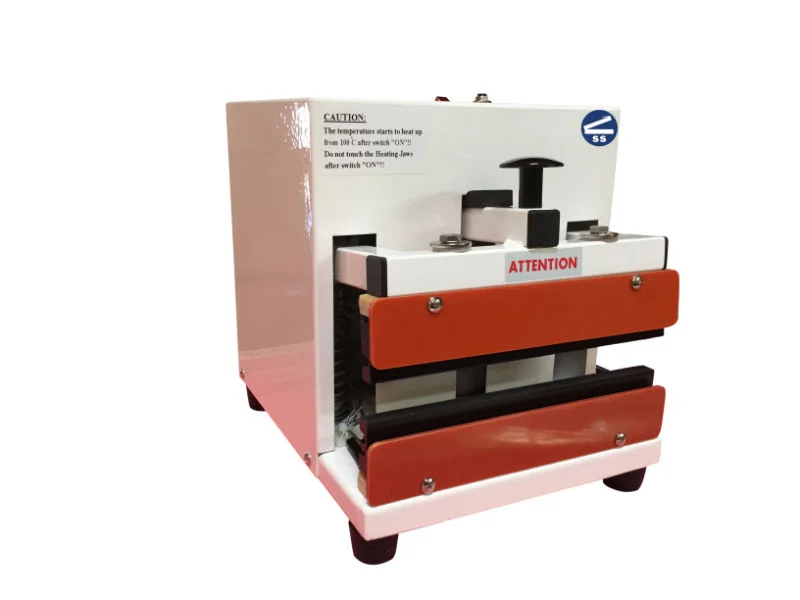

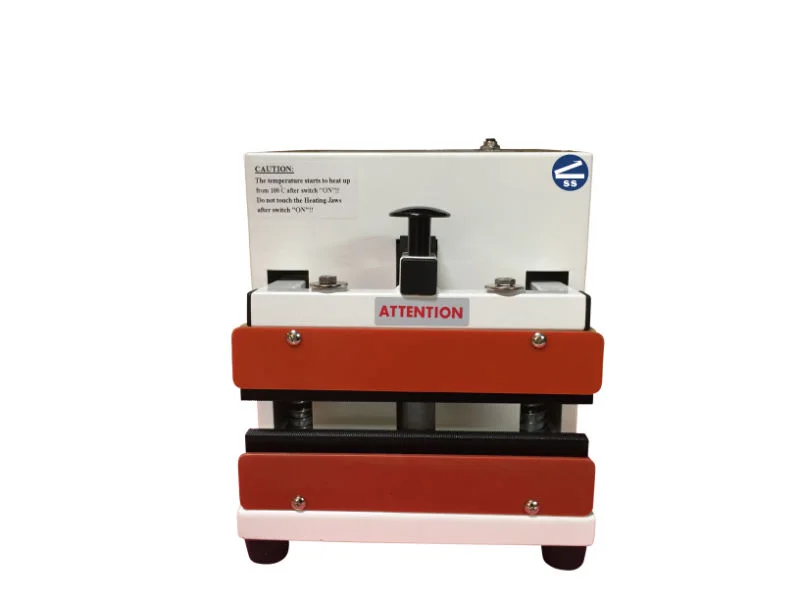

Table-Top Direct Heat Sealer

W-Series | SKU: WNS-200D

FEATURES:

  • Consistent seals each time

  • Easy to operate

  • Strong 10mm seal width w/ meshed seal style

  • Protector bars around sealing jaws

  • Digital temperature controller

  • PTFE coated jaws

  • Seals a variety of thermoplastic materials

WNS-200D is a table-top direct heat sealer that can seal many different types of thermoplastic materials including aluminum foil, Kraft paper, cellophane, mylar, polypropylene, poly-nylon and other thicker materials.  Please note:  direct heat sealers cannot seal polyethylene.

Material up to 8" wide and 20 mil thick can be sealed.  The sealer is equipped with a digital control panel to guarantee consistent and reliable sealing.  Sealing bars are enclosed with heat resistant plastic bars for safer operation.

Easy to operate.  Set the temperature and seal time.  (Note:  Temperature is in Celsius, not Farenheit).  Always start with the minimal setting and slowly increase temperature as needed.  Insert material between the seal bars and lightly bring the seal bars to meet using the knob.

The WNS-200D sleek and compact design makes the unit suitable for manufacturing facilities with small work spaces.

Specifications:

HeaHeader 2
TypeDirect Heat / Constant Heat
Voltage120V
Power250W
Seal Width10mm
Seal Length8"
Seal TypeMeshed
Seal Temperature100-300°C / 212-572°F
Machine Dimensions8" x 10" x 9"
Weight18lbs
