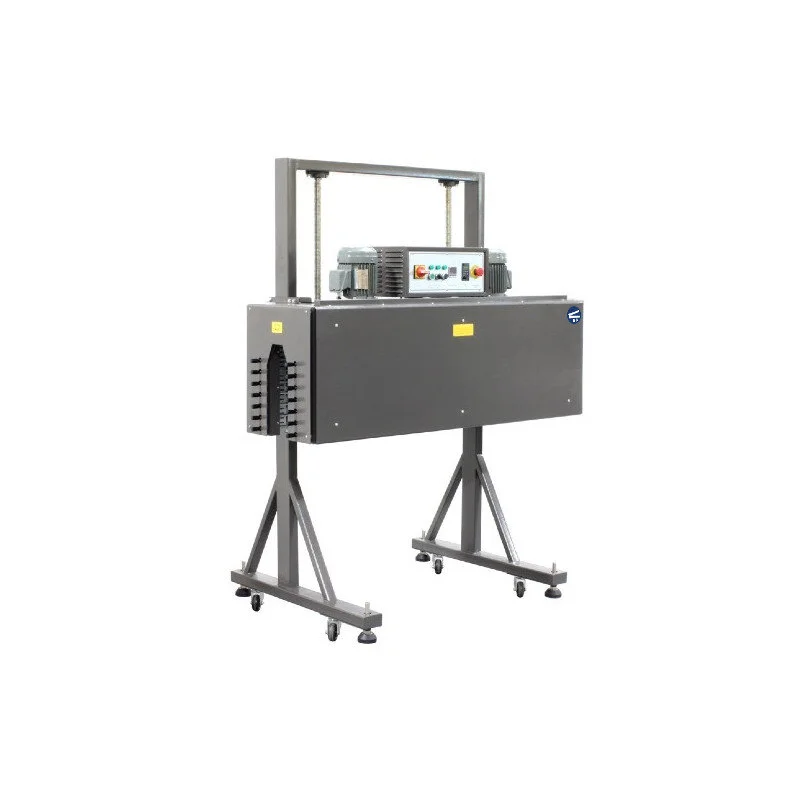

Shrink Banding Tunnel

ST-Series | SKU: ST-1230XSBT

This versatile tunnel can be used for a wide variety of applications such as tamper evident neck bands, full body shrink sleeves for pill bottles, jars, food and beverage containers and other similar containers.

This tunnel is designed to fit over the top of an existing conveyor or bottling line in order to shrink PVC or PET shrink bands or shrink sleeves around the product.  A crank handle adjusts the tunnel chamber from 28” – 40”.

FEATURES

  • Powder coated base and body

  • Variable temperature control 0-400 degrees

  • Variable air velocity control for blower motor

  • Adjustable height tunnel – will adjust to fit over existing conveyor line

  • Heavy duty stand with adjustable height leveling pads on both sides of tunnel chamber for added stability

  • 6 round fin heaters (3 per side) mounted on the each side of the tunnel chamber directing heat toward the containers

  • Dual blower motor (1HP) will disperse heat throughout chamber

  • Maximum package height is 12”

  • Adjustable leveling pads

  • Send us some samples for testing on our shrink tunnel

  • Options: 7.8” and 10” chamber width also available

  • 1 year warranty

  • Unit ships via LTL freight only. Call for freight rates

Specifications:

Header 1Header 2
Electrical220V / 3 Phase / 53 Amps
Power18KW
Tunnel Dimensions59"L x 40"W x 15"H
Max. Package Height12"
Adjustment Tunnel Height28" - 40"
Machine Dimensions63"L x 40"W x 55"H
Weight550-lbs
