Metal Detector

MD-Series | SKU: MD-4520

The MD-4520 is designed for easy integration into food production lines.  Superior levels of metal detection sensitivity are attained using multi-frequency sensor engine technology.  With the "Auto Learn" feature, the MD-4520 metal detector is easy to set up and operate with a low cost of ownership.

We carry other metal detector aperture widths and heights depending on your product size.  General rule of thumb:  Aperture should be 2" higher and 2" wider than the product going through the machine.

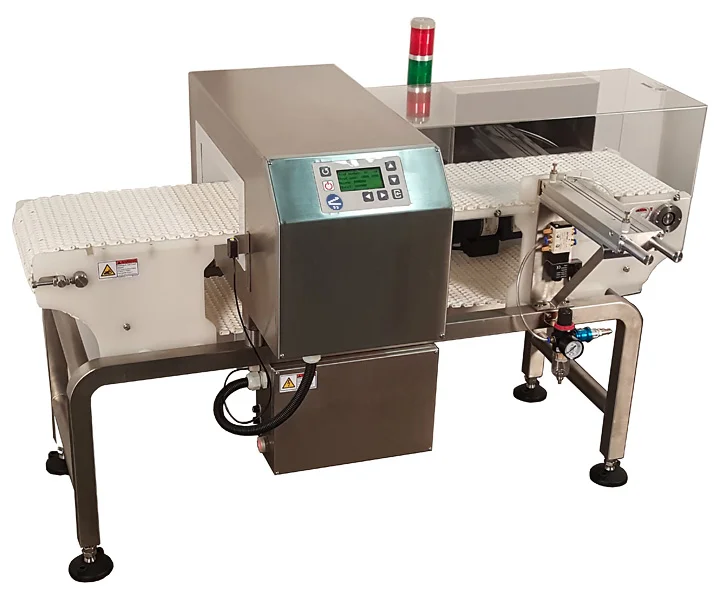

**Picture of unit shows optional pusher reject and stack light.  Plexiglass safety cover only provided if optional pusher reject is ordered.**

FEATURES:

  • #304 stainless steel frame construction
  • 20 program memory
  • Multi-frequency sensor technology
  • Plastic Intralox type belt
  • Superior metal detection on FE, Non-FE, and SS
  • Voltage:  220V
  • Lead Time:  3-5 days

OPTIONAL FEATURES:

  • 2 position stack light tower
  • Pusher reject
  • Air blast reject
  • Variable speed drive
  • Solid white FDA food grade belt
  • Stainless steel locking casters
Header 1Header 2
Power220V / 1 Phase / 10Amp
Air3 CFM @ 80PSI (Only if reject option ordered)
Max Width17.7" (450MM)
Max Height7.8" (200MM)
Weight (lbs)363


Additional Options:

(Additional options lead time:  10-12 weeks)
