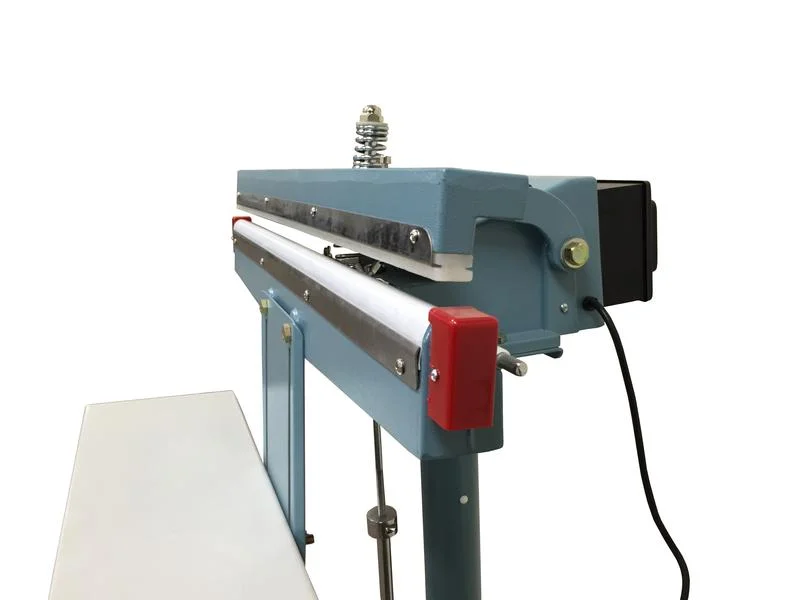

Foot Sealer

FS-Series | SKU:  FS-358F / FS-458F / FS-658F

Our FS-Series Foot Sealers are ideal for high-volume poly bag sealing and other thermoplastic sealing.  Available in 14”, 18”, and 26” lengths with an 8mm seal width, the FS-Series foot sealers are capable of sealing 15-20 bags/minute.  Depending on the model of the sealer, materials up to 26” wide and a total thickness of 20mil can be sealed.  These sealers allow you to keep your hands free for quicker and more accurate sealing.  The machines are also equipped with a plug-in timer.  Once the timer is set, the sealer provides a consistently flat seal.

FS-Series Sealers are light blue in color.  Depending on the model of the sealer, materials up to 24” wide with a 16 mil total thickness can be sealed.  The sealers include a 26” pedestal, a 2” base, adjustable work table, and adjustable foot control.  The manufacturer’s replacement kit includes two elements, a sheet of PTFE cover and tools.  Elements are easily replaceable due to the clip type element holder.

Easy to Operate:  Set the timer.  Insert the bag between the two sealing bars and press down on the foot board.  Hold down the foot board for an additional 2-3 seconds after the timer light goes off to set the seal.

FEATURES:

  • Ideal for high volume sealing
  • Plug-in electronic time for variable control
  • All metal construction
  • No warm-up time
  • Sits on rectangular base for stability

Specifications:

FS-358FFS-458FFS-658F
Power Supply110V / 50Hz110V / 50Hz110V / 50Hz
Watts600W800W1000W
Seal Length14"18"26"
Seal Width8MM8MM8MM
Width63-lbs65-lbs68-lbs
Dimensions16" x 20" x 34"20" x 20" x 34"28" x 20" x 34"
