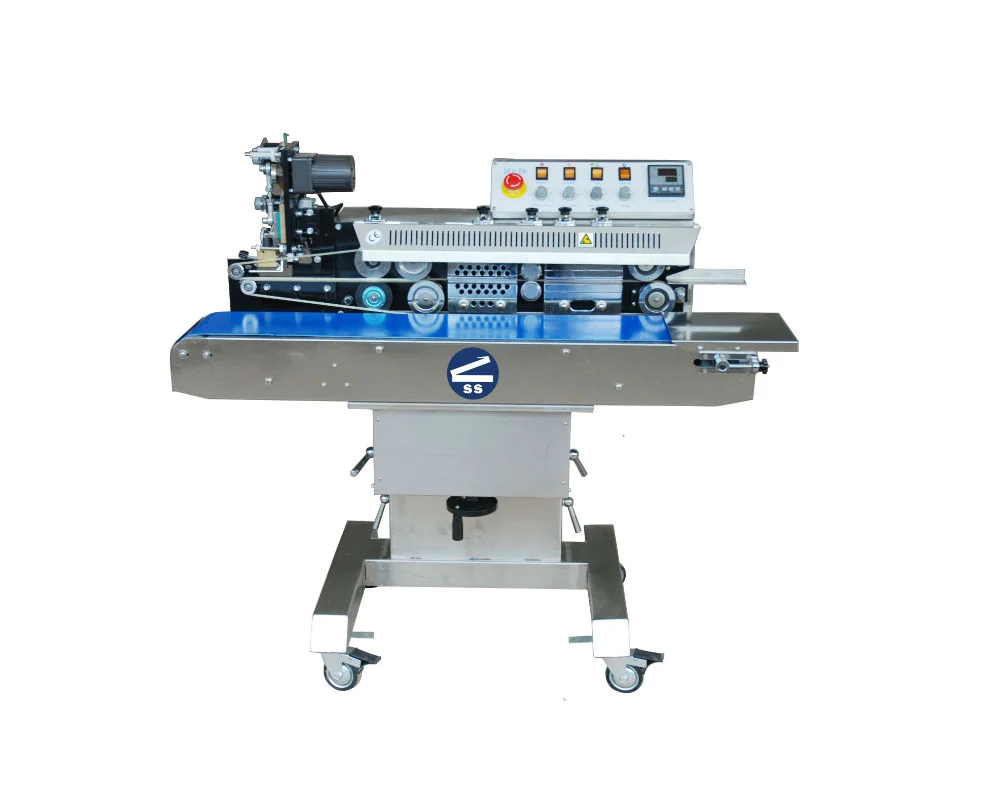

Horizontal Band Sealer

FRS-Series | SKU: FRS-1120W

FRS-1120W is designed to quickly and efficiently seal any thermoplastic material including PE, PPE, stand up pouches, gusseted bags, and moisture barrier bags.  This sealer can also be used in a wide array of fields such as: food, medical, and cosmetics industries.  The FRS-1120W is equipped with an imprinter for color ribbon printing on your package while sealing.  Color ribbon printing provides a stronger adhesion print than dry ink coding and works best for humid environments.

FEATURES:

  • Durable stainless steel

  • Easy to operate - minimal operator training

  • Fast warm up time
  • Ideal for medium duty applications
  • Tilting seal head which allows the machine to tilt up to 30 degrees
  • Suitable for any product including liquids
  • Solid state digital temperature controller that maintains the seal bars at a proper temperature for consistent seal quality
  • Motorized rubber conveyor for speed control
  • Knurled pressure wheels with variable pressure adjustment
  • Sealing method - constant/direct heat accompanied with a pair each of cooling and heating blocks
  • Fully adjustable conveyor (both height and depth of conveyor in relation to seal bars can be adjusted)

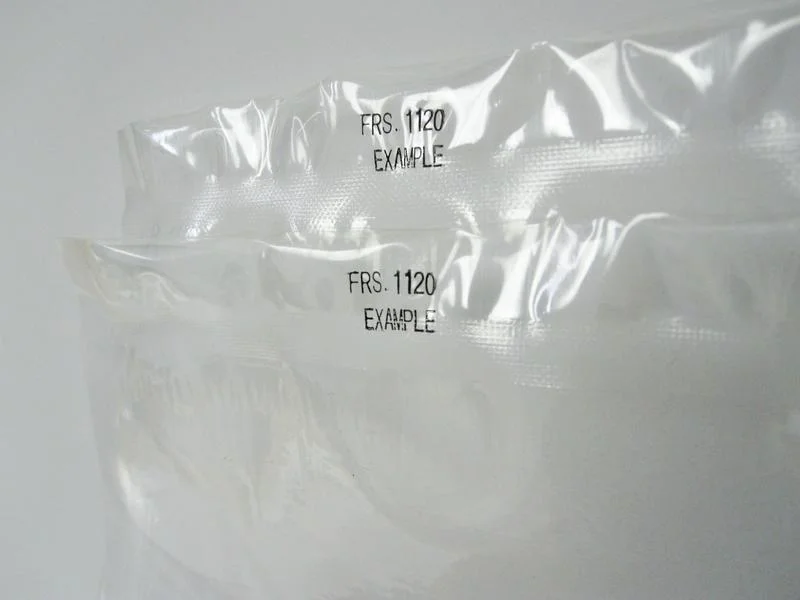

  • Color ribbon allows for printing above the seal line
  • Unit feeds from right to left.
  • Equipped with an emergency stop button
  • Spare Kit includes:  PC Board, PTFE belt, wheel belt, fuse, motor brush, heating element, silica gel ring, silicone pin, tweezers, and typesets (numbers 0-9 and letters EXP, MFD)
  • Unit ships via LTL freight only.  Call for freight rates

OPTIONAL FEATURES:

  • 15mm seal width

  • Digital counter to keep track of sealed packages

Specifications:

Header 1Header 2
Power110V / 60Hz
Motor Power100W
Sealing Speed0-394"/min
Seal Width8MM
Sealing Power300 x 2
Temperature Range0-300°C
Conveyor Size43" x 8"
Single Conveyor Load5.5lbs
Max. Conveyor Load16.5lbs
Character Size2 x 4 x 5 MM, 11 characters/line, 2 Lines
Printing Heating Power50 x 2
Dimensions43" x 24" x 41"
Weight (lbs)Net: 187 / Gross: 282
