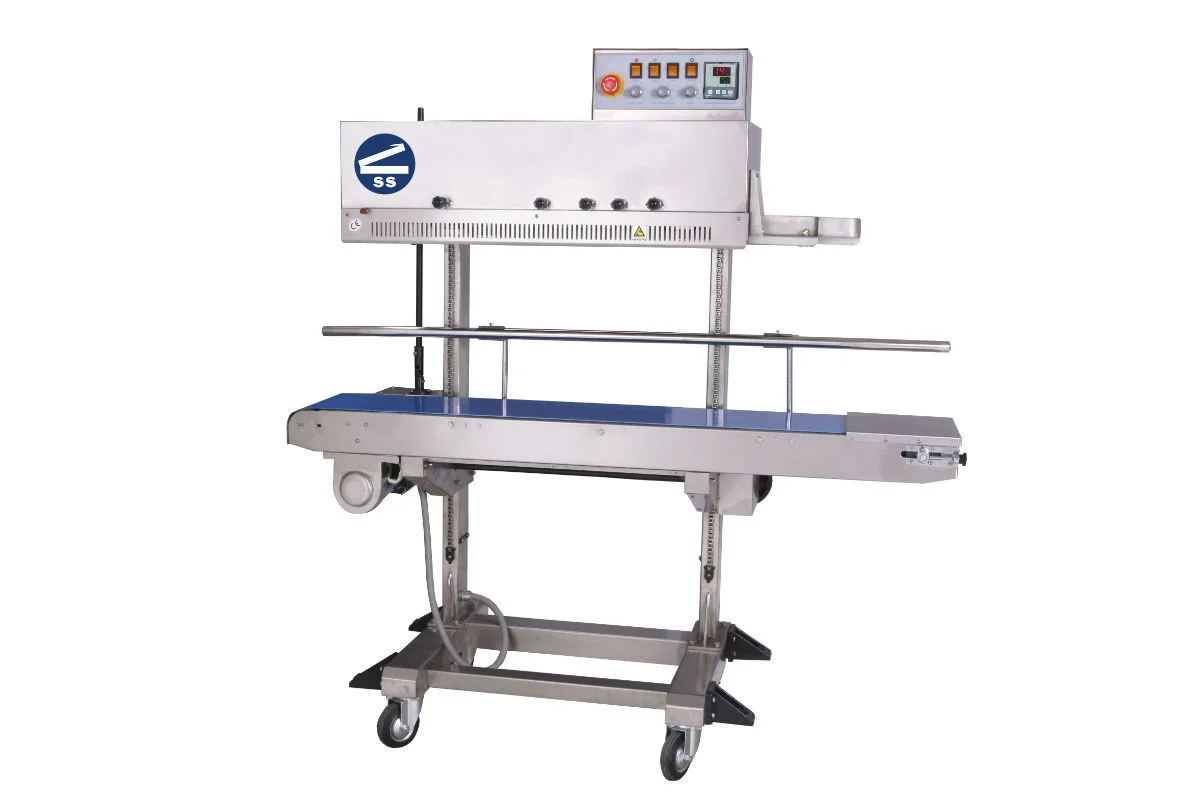

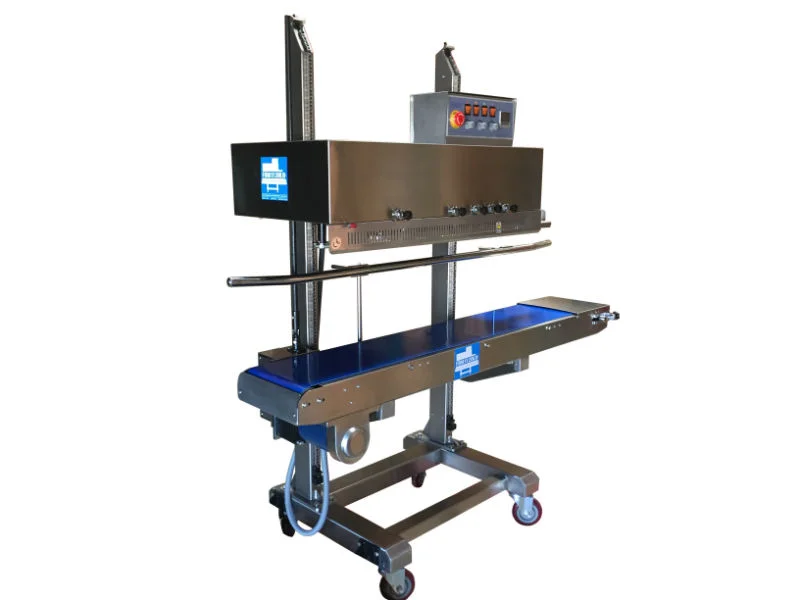

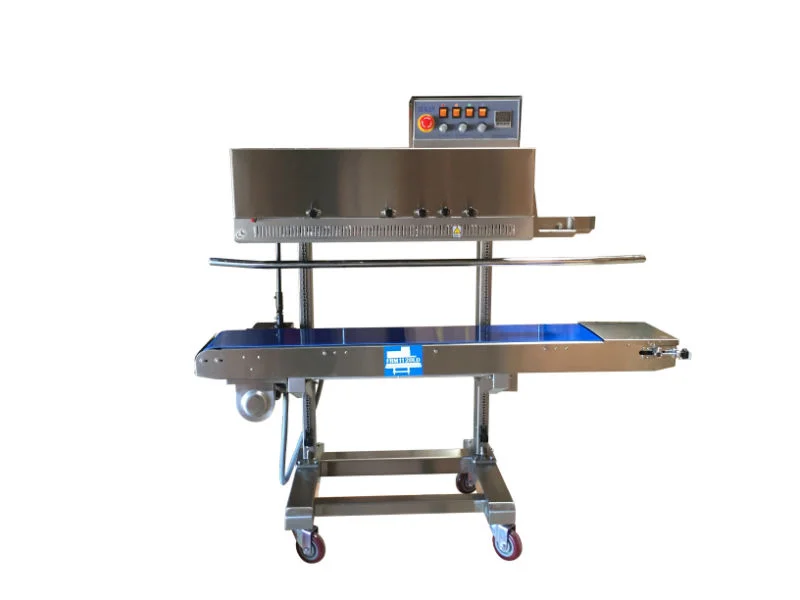

Vertical Band Sealer

FRM-Series | SKU: FRM-1120LD

FRM-1120LD is designed to quickly and efficiently seal any thermoplastic material including PE, PPE, stand up pouches, gusseted bags, and moisture barrier bags.  This sealer can also be used in a wide array of fields such as: food, medical, and cosmetics industries.  FRM-1120LD is our most versatile band sealing capable of sealing bag heights of 4" - 27" and up to a single load of 11-lbs.

FEATURES:

  • Adjustable height of both sealing head and conveyor belt providing maximum capacity of bag sizes

  • Durable stainless steel construction

  • Easy to operate - minimal operator training

  • Fast warm up time

  • Ideal for medium duty and heavy duty applications

  • Vertical configuration makes this suitable for any product including liquids

  • Solid state digital temperature controller that maintains the seal bars at a proper temperature for consistent seal quality

  • Motorized rubber conveyor for speed control

  • Knurled pressure wheels with variable pressure adjustment

  • Sealing method - constant/direct heat accompanied with a pair each of cooling and heating blocks

  • Fully adjustable conveyor (both height and depth of conveyor in relation to seal bars can be adjusted)

  • Dry ink coding allows for printing at the seal line

  • Unit feeds from right to left (Optional: left to right feed available)

  • Equipped with an emergency stop button

  • Spare Kit includes: PC Board, PTFE belt, wheel belt, fuse, motor brush, heating element, silica gel ring, silicone pin, tweezers, and typesets (numbers 0-9 and letters EXP, MFD)

  • Unit ships via LTL freight only. Contact us for freight rates

OPTIONAL FEATURES:

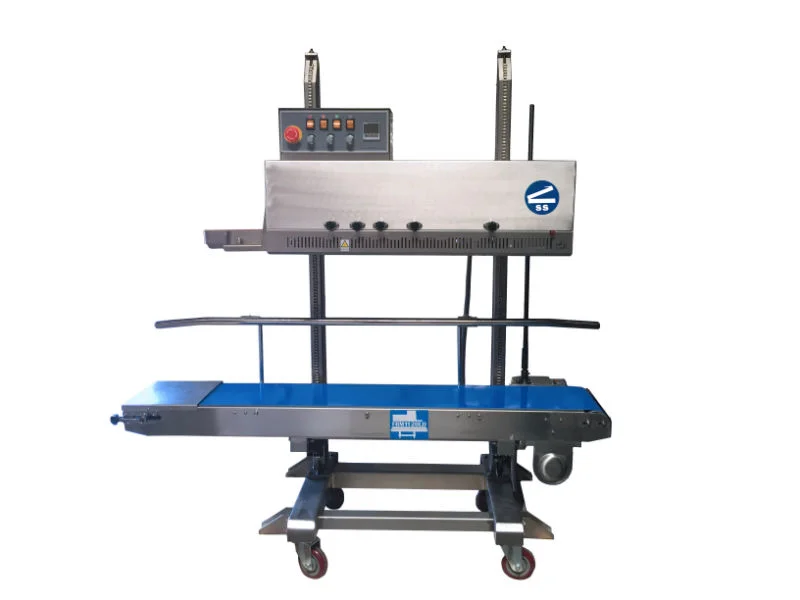

  • Left to right configuration (now a stock option!)

  • 15mm seal width

  • Digital counter to keep track of sealed packages
