Vacuum Sealer

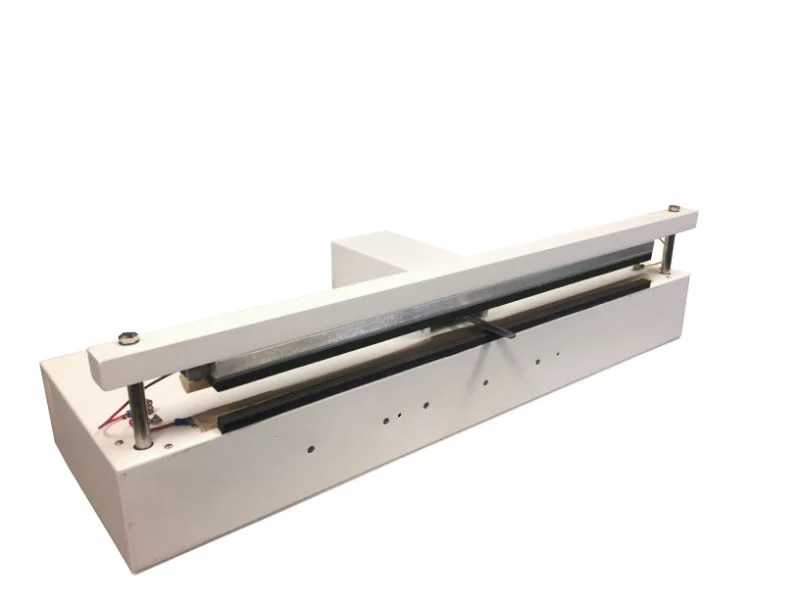

Nozzle Vacuum Sealers | SKU: AVN-30

Foot-pedal activated gas-flush vacuum packaging at its finest. The AVN's 1/4" wide sealing element delivers a leak-proof seal from sensitive electronics to sterile medical devices, food to biotech applications, aerospace technology to scientific devices.

With one touch of the pedal, the AVN flushes out oxygen and moisture using an inert gas of your choice. Then, the automated stainless steel nozzle retracts, and your products are sealed in seconds. Combine the AVN's precise automation with speed and extensive safety features, a faulty seal is no longer possible.

Clean-room compatible, the AVN is ideal for electronics, medical, and pharmaceutical applications. Providing additional functionality and convenience, the AVN's gas-flush feature can be switched off as well as the vacuum feature, or both can be switched off for sealing only with impulse-heat.

The AVN is hand-assembled at our facility using only superior grade components. The AVN is also featured in five seal-lengths (20", 25", 30", 35" and 50") and can be configured to meet CE certification requirements.

FEATURES:

  • Gas-flush

  • 100% maintenance free venture vacuum pumps

  • Intuitive design

  • Extensive safety features

  • Rust-treated and powder-coated steel chassis

  • Clean-room compatible

  • Two year warranty

  • 1 week trial period

  • External compressor required (6CFM@100PSI)

OPTIONS:

  • Self-contained compressor (Model: CAVS-30)

  • Gas-flush / self-contained compressor (Model:  CAVN-30)

  • Bi-active seal (top and bottom heating) - Voltage: 220V

  • Stainless steel upgrade

  • CE certification

  • Vacuum filter

  • Vacuum regulator

  • 220V

  • Dual nozzle

  • Digital temperature control

  • Working tray – 20” x 12”

GAS FLUSH:

With one touch of the pedal, the vacuum sealer flushes out oxygen and moisture using an inert gas of your choice. Then, the automated stainless steel nozzle retracts, and your products are sealed in seconds. With precise automation with speed and extensive safety features, a faulty seal is no longer possible.  Clean-room compatible, the sealer is ideal for electronics, medical, and pharmaceutical applications. Providing additional functionality and convenience, the gas-flush feature can be switched off as well as the vacuum feature, or both can be switched off for sealing only with impulse-heat.

SELF-CONTAINED COMPRESSOR:

Expanding the abilities of the AVS model, the CAVS/CAVN eliminates the need for additional equipment.  Completely self-contained, the CAVS/CAVN is ready to perform out of the box, while reducing equipment requirements and providing greater flexibility of placement locations within your facility. We’ve simplified our design with high quality components.  All that is needed to operate the CAVS/CAVN is a press of a pedal and in a manner of seconds you have a tight, reliable vacuum package.  The units are equipped with our exclusive high flow, stainless steel retractable nozzle that will help avoid operator bag manipulation during the vacuum cycle. With our clean, quiet built-in air compressor/vacuum pump, you will be assured reliable vacuum seals for years to come. As with all our machines, setting up is quick and easy using only a standard electrical outlet.

Specifications:

Model #AVN-30CAVS-30CAVN-30
FeaturesGas FlushSelf-ContainedSelf-Contained / Gas Flush
Seal Length30"30"30"
Seal Width1/4"1/4"1/4"
Vacuum Flow6CFM3CFM3CFM
Max. Vacuum Pressure27inHg27inHg27inHg
Air Requirements6CFM@100PSIN/AN/A
Amps@120V71010
Size38" x 10" x 7"38" x 10" x 12"38" x 10" x 12"
Weight (lbs)608484
Price$3,395.00$3,695.00$3,995.00
