Carton Sealer
CS-Series | SKU: CS-5050QS

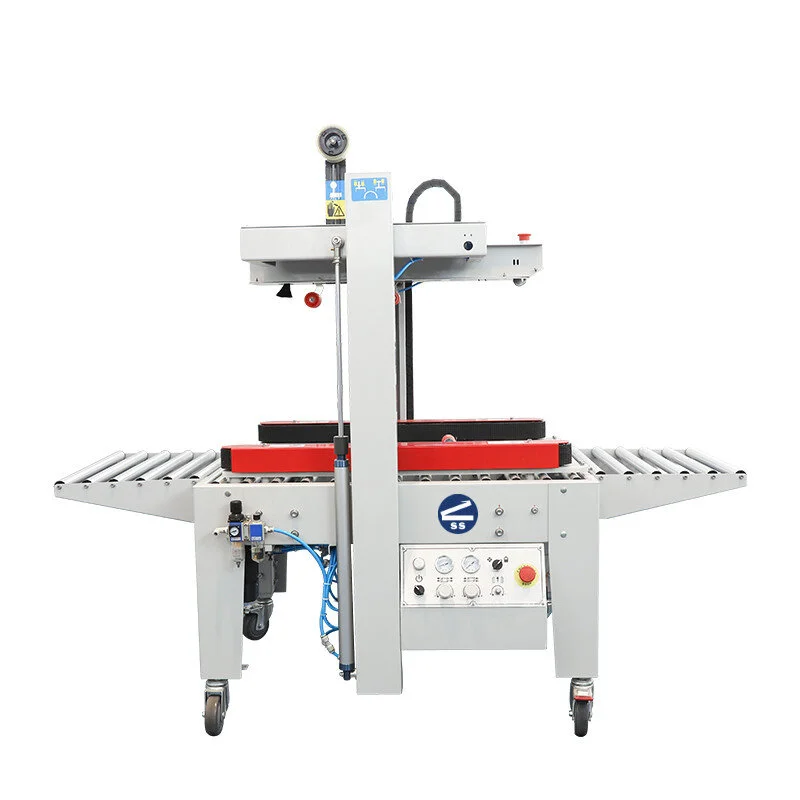

The CS-5050QS Semi-Automatic Random Carton Sealer features two side belts to pull the box through machine. The machine comes complete with infeed / exit conveyors, casters, power cord and plug.
The operator simply folds the top flaps of the corrugated carton and feeds it into the machine. The operator pushes the box against a microswitch plate to activate carton sealing process. The CS-5050QS applies a single tape to both the top and bottom of the case simultaneously. The CS-5050QS will easily adjust to process different size cartons. The CS-5050QS is also equipped with a lock to increase efficiency if only one box size is needed. Excellent for types of boxes.
FEATURES:
Automatic adjustment to random box sizes
Side pressure rollers to close box top
2 side drive belts for positive feed
Infeed / exit conveyors
Casters
External compressor required
Options: 3” tape heads, stainless steel frame
Unit must ship via LTL freight only. Call us for rates.
Specifications:
| Specifications | |
|---|---|
| Carton Size | |
| Length | 5.2" to Infinite |
| Width | 3.25" Min to 19.7" Max |
| Height | 3.5" Min to 19.7" Max |
| Machine Size | 71"L x 22"W x (55"-62")H |
| Machine Speed | 65ft/min up to 15 cartons per minute |
| Max Box Weight (lbs) | 75 |
| Air | 0.4Mpa |
| Electrical | 110V / 1 Phase / 10 Amp / 200W |
| Weight (lbs) | 300 |
| Tape Head Specs | 3" (76MM) Wide / 1,000 or 1,500 yards |
