Carton Sealer
CS-Series | SKU: CS-5050AC
Unlock seamless carton sealing with our CS-5050AC featuring a side drive belt design. The operator simply folds the top flaps of the corrugated carton and feeds it into the machine. The CS-5050AC applies a single tape to both the top and bottom of the box simultaneously. The CS-5050AC can easily be adjusted ito process a different size carton. Excellent for low profile, small and lightweight boxes.

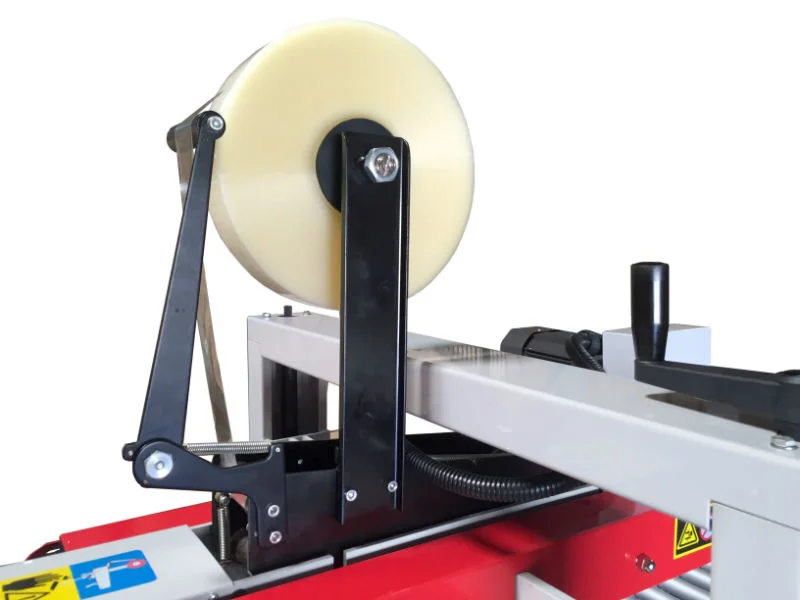

Experience thoughtful design with our AC series carton sealers – tailored for your convenience. The sealer comes complete with infeed/exit conveyors, casters, and power cord, providing you a plug and play system. Enjoy flexibility in installation – whether you prefer a hanging or fixed conveyor setup, our AC series accommodates your needs seamlessly. Safety is paramount, with cutting blades equipped with a protective cover for worry-free operation. Simplify maintenance with easily replaceable tape heads – just pop them into place and latch for quick and hassle-free replacements. Elevate your packaging process with the user-centric features of our AC series, designed to make sealing cartons a breeze.
FEATURES:

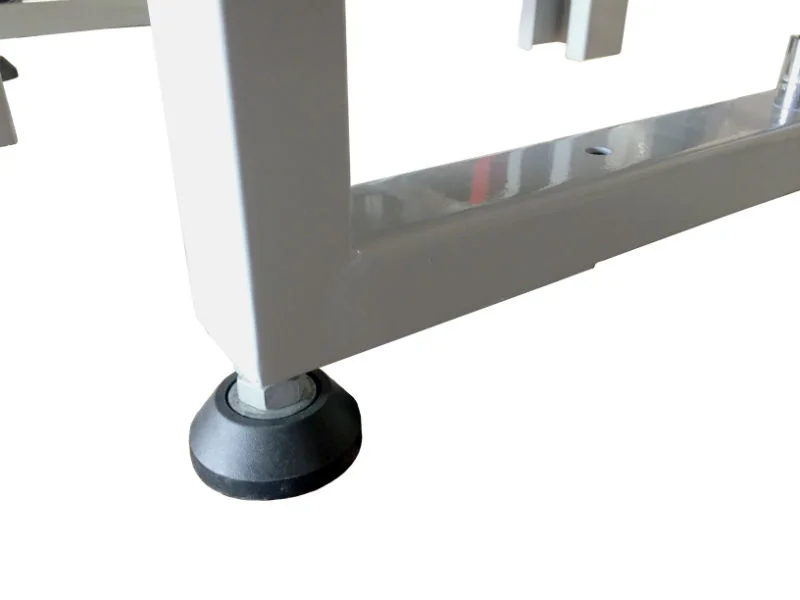

Adjustable height of table
Heavy duty frame
Manually adjust height and width of machine for each box size
Suitable for small, low profile boxes
Side driving
Operator feeds and folds flaps into machine
Optional: stainless steel
Unit must ship via LTL freight only. Call us for rates.
Specifications:
| Specifications | |
|---|---|
| Carton Size | |
| Length | 5.9" to Infinite |
| Width | 4.7" Min to 19.6" Max |
| Height | 4.7" Min to 19.6" Max |
| Machine Size | 57"L x 36"W x (38"-64")H |
| Machine Speed | 65.6ft/min up to 15 cartons per minute |
| Max Box Weight (lbs) | 55 |
| Electrical | 110V / 1 Phase / 10 Amp |
| Weight (lbs) | 286 |
| Tape Head Specs | 2" (48MM) Wide / 1,000 or 1,500 yards |
